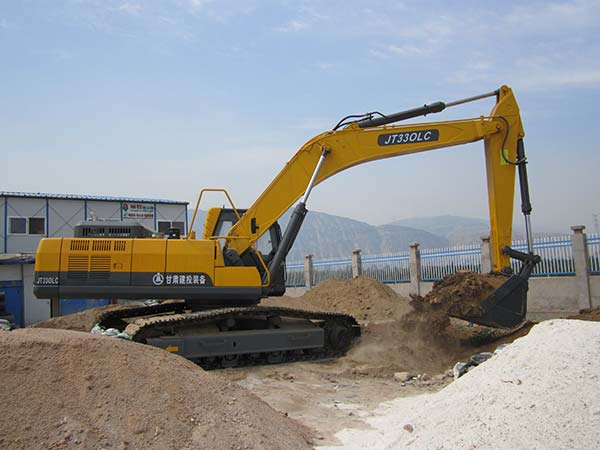

JT330LC液压挖掘机是一种十分高效的机器，它配备了重载型的、拥有出色稳定性的高宽底盘系统，性能卓越，技术性能先进。发动机、液压件均采用国际一流品牌，使得整机性能更加卓越；生产效率高。设计符合人机工程学原理、易于操作且简单省力的控制装置使操作员可以最大程度地提高性能。操作灵活、生产率高、效率好，广泛适合各种应用。先进的设计和制造技术让机器在任何应用中都拥有出色的耐用性。
Hydraulic excavator is a very efficient machine。It is equipped with a heavy duty, excellent stability aspect chassis system。Performance, advanced technical performance。Engine, hydraulic parts are used world-class brand, which makes the performance even more remarkable; production efficiency。Ergonomic design, easy to operate and simple labor-saving control device allows the operator to maximize performance。Flexible operation, high productivity, efficiency, widely for a variety of applications。The state-of-the-art design and manufacturing technology for the machine have excellent durability in any application.
|
型 号 |
JT330LC 液压挖掘机 |
|
工作装置的型式Working device type |
3179mm标准斗杆Standard Stick |
|
铲斗容量（堆积）Bucket capacity (accumulation) |
1.38m3 |
|
整机质量 |
33000kg |
|
主机质量Host quality |
28000kg |
|
发动机 |
6HK1-XABEA-08-C2 |
|
A：总宽度
（不包括后视镜）(Not including mirrors) |
3190mm |
|
B：驾驶室高度Cab height |
3080mm |
|
C：平台尾端回转半径Platform end of the radius of gyration |
3405mm |
|
D：离地间隙Ground clearance |
503mm（不包括履带板凸出部） |
|
E：配重离地高度Counterweight ground clearance |
1180mm（不包括履带板凸出部） |
|
F：发动机盖高度Hood height |
2605mm（不包括履带板凸出部） |
|
G：上车总宽度Total width on the train |
2995mm |
|
H：行走机构总长度The total length of the walking mechanism |
4625mm |
|
I：履带下车总宽度The crawler get off the total width |
3190mm |
|
J：链轮与张紧轮的中心距离Center-to-center distance of the sprocket and the idler wheel |
4030mm |
|
K：履带板宽度Width of shoe |
600mm（三筋履带板）The three tendons Tracked plate |
|
接地比压Ground pressure |
60kPa（0.51 kgf∕cm2，7.28 psi） |
|
回转速度 |
10.5min－1（rpm） |
|
行走速度（高∕低）Walking speed |
3.72∕5.99km |
|
爬坡能力Gradeability |
35° |
工 作 范 围（JT330LC）
种 类
项 目 |
3179m（10 ft 7 in）标准斗杆Standard Stick |
|
反 铲Backhoe |
|
|
mm |
|
|
A：最大挖掘半径Max. excavation radius |
11100 |
11092 |
|
B：最大挖掘深度Max. excavation depth |
※7380 |
7303 |
|
C：最大挖掘高度Max. excavation height |
※10210 |
10197 |
|
D：最大卸载高度Max. unloading height |
※7110 |
7150 |
|
E：运输高度Shipping Height |
3220 |
3260 |
|
F：总运输长度Total transport length |
10640 |
11050 |
|
G：最小回转半径Minimum radius of gyration |
4260 |
4241 | |
